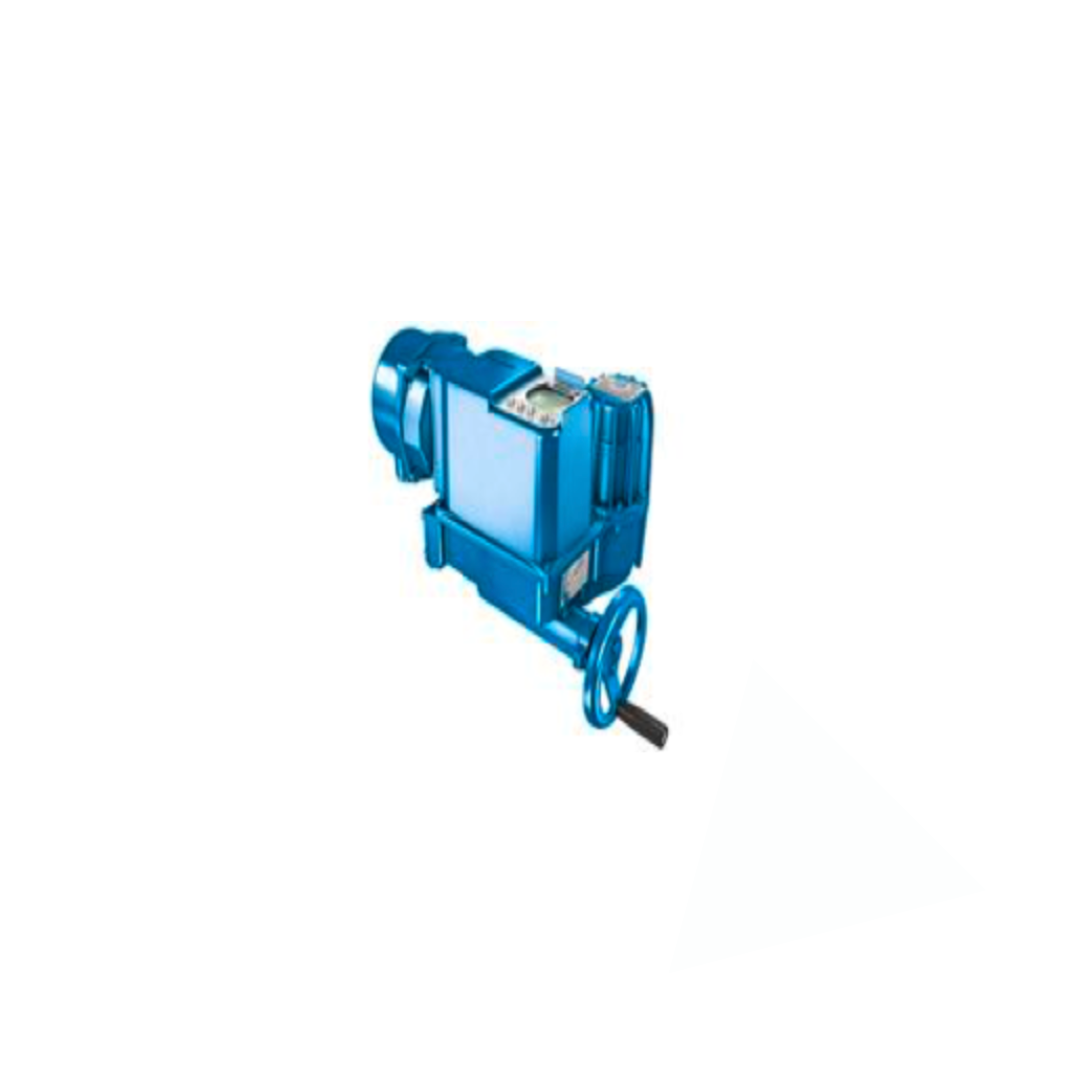

i-matic actuators are high-end sophisticated actuators. The actuators are operated via user interface with LC-display and push-buttons. They include c-matic functions and additionally programmable actuator functions and operating modes via remote and local settings, watchdog, electronic nameplate, datalogger as well as local valve diagnostics for predictive maintenance.

✔︎ Valve attachment according to EN ISO 5210 or DIN 3210

✔︎ Mains voltage 380 V - 420 V

✔︎ DREHMO 3-phase AC squirrel cage motor, insulation class F, 3 thermoswitches

✔︎ Short-time duty S2 - max. 15 min.

✔︎ Combined sensor for limit and torque sensing

✔︎ Controls:
➤ Switchgear: Interlocked reversing contactors
➤ Control: 24V DC, 3+1 potential-free and freely programmable command inputs
➤ Status signals (programmable, potential free): 6 normally open contacts and 1 change-over digital output

✔︎ Local controls:
➤ 4 multi-function push buttons: Modes: LOCAL - OFF - REMOTE - LEARN
➤ Menu Navigation: UP - ESCAPE - DOWN - ENTER, (lockable)
➤ Operation: OPEN - STOP - CLOSE
➤ Indication lights: 6 indication lights (colour coding programmable for 5): End position CLOSED, torque fault CLOSE, fault, torque fault OPEN, end position OPEN, Bluetooth (blue)
➤ Interface: Bluethooth

✔︎ Enclosure protection IP68 according to IEC 60529

✔︎ Ambient temperature -25°C to +70°C

✔︎ Corrosion protection K3

✔︎ Colour RAL 5015 / sky blue

✔︎ Handwheel for manual operation / without switch-over mechanism

✔︎ Electrical connection: plug/socket connector with screw-type connection
